Short answer: choose OS2, OM4, or OM5 by matching the installed fiber system, optical equipment, and link plan. Do not treat jacket color, a newer category name, or the cable alone as proof of compatibility. The complete path must use the fiber class expected by the equipment and network design.
GTfiber lists MPO trunk, patch, and harness cables in OS2, OM4, and OM5 versions. These labels describe different fiber families. They are not interchangeable selections inside one product page, and one is not automatically better for every route.
Start with the installed system
If the cable is replacing an existing assembly, check the specification of the installed cable, cassette, panel, and optical equipment. If the link is new, use the approved network design and equipment documentation. When those records are incomplete, confirm the requirement with the network designer or equipment documentation before ordering.
| Fiber class | General role | First compatibility check |
|---|---|---|
| OS2 | Single-mode fiber path | Confirm that the optics, installed cable plant, connectors, and end-face plan are for single-mode service |
| OM4 | Multimode fiber path | Confirm that the installed multimode system and optical equipment specify OM4 |
| OM5 | Multimode fiber path with an OM5 design requirement | Confirm that the complete link and network specification call for OM5 rather than assuming an automatic upgrade |
When OS2 is the right starting point
Use OS2 when the planned path is a single-mode system. GTfiber lists OS2 G.657.A1 and OS2 G.657.A2 options across its MPO product families. The A1 or A2 designation should follow the installed system requirement. It should not be changed only because both options appear similar in an online image.
Before purchase, confirm the equipment interface, connector-end configuration, end face, fiber count, route length, and the OS2 subtype shown in the network design. If the required subtype or connector configuration is not listed, do not substitute another product. Contact customer support before ordering.
Examples: MPO-12 48F OS2 G.657.A1 trunk cable and MPO-12 OS2 G.657.A2 fiber patch cable.
When OM4 is the right starting point
Use OM4 when the installed or planned system specifies OM4 multimode fiber. Check the full link rather than the cable in isolation. Patch panels, cassettes, existing trunks, equipment ports, and replacement spares should follow the same approved system plan.
GTfiber lists OM4 versions of MPO trunk, patch, and harness cables. Choose the product family by route role first, then select OM4 and the available length and connector-end options.
Examples: MPO-12 48F OM4 trunk cable, MPO-12 OM4 fiber patch cable, and MPO-12 to 2 x MPO-4 OM4 harness cable.
When OM5 is the right starting point
Use OM5 when the network design specifically calls for OM5. Do not select it only because it is a later multimode category. Compatibility still depends on the optics, installed cabling, link design, and equipment documentation.
If part of the route is existing OM4 and a new segment is proposed as OM5, review the full channel instead of assuming the category change is harmless. A clear equipment schedule and port map are more reliable than choosing by color or product photography.

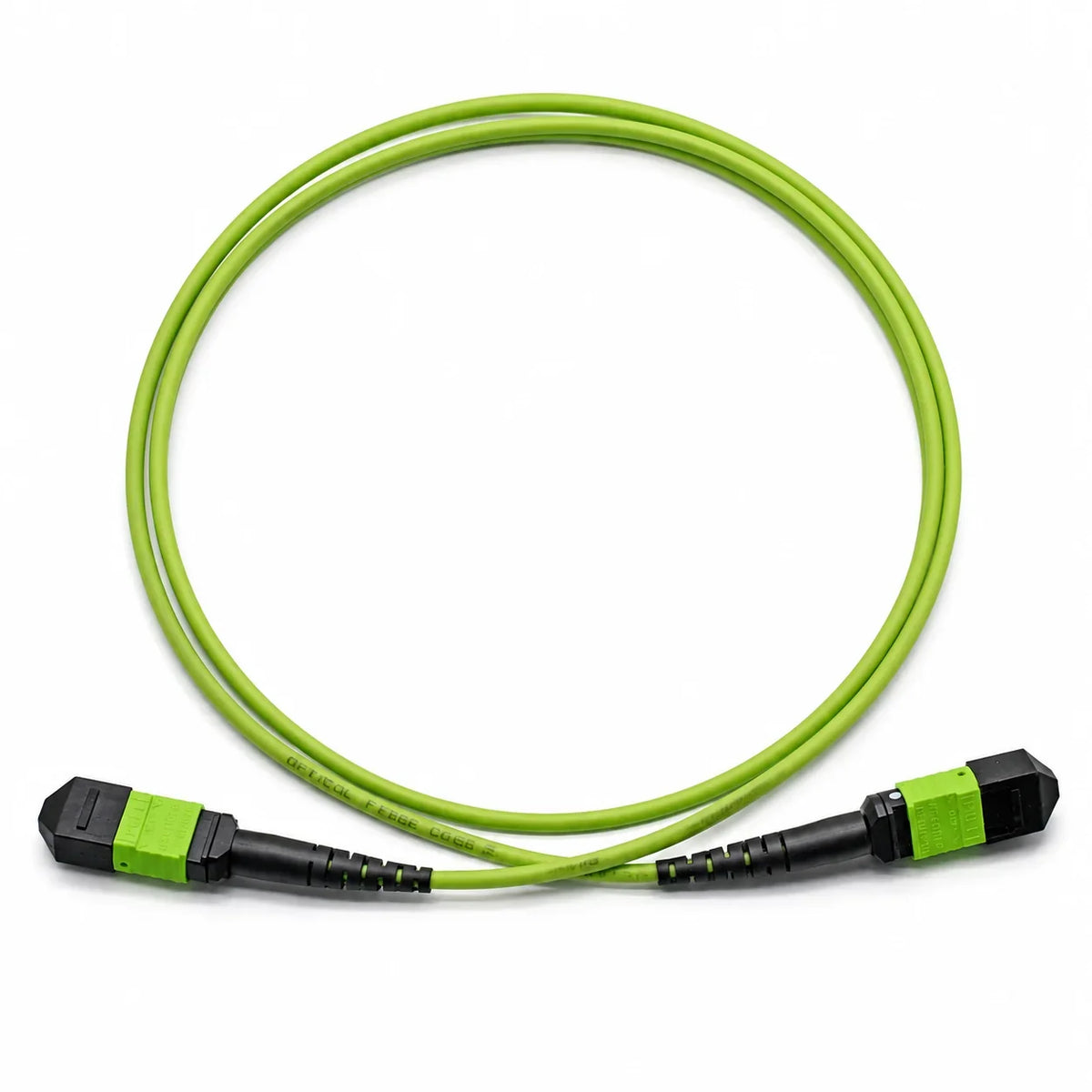

Examples: MPO-12 48F OM5 trunk cable and MPO-12 OM5 fiber patch cable.
Why jacket color is not enough
Color can help identify a cable in an organized installation, but it is not a complete technical specification. Photography, lighting, and local identification practices can all affect appearance. Use the product title, written fiber class, order record, and cable marking where available.
Five checks before selecting a fiber class
- Read the approved link design. Identify whether the path is single-mode or multimode and whether a specific class or subtype is required.
- Check both ends of the link. Confirm the equipment ports, optics, panels, cassettes, and existing cabling.
- Choose the cable role. Decide whether the assembly is a trunk, patch, or harness cable.
- Confirm the written product specification. Do not approve the order from color or a thumbnail image.
- Record the selection. Keep the fiber class, product family, length, connector configuration, labels, and quantity together for repeat orders.
Common ordering mistakes
- Assuming OM5 is a universal replacement for OM4 without checking the network design.
- Mixing OS2 and multimode components in a planned channel.
- Ignoring the G.657.A1 or G.657.A2 requirement on an OS2 order.
- Choosing by jacket color instead of the written specification.
- Confirming the cable but not the equipment, cassette, panel, or existing trunk.
What to do when the fiber class is unclear
Pause before ordering and collect the equipment model, existing cable specification, route role, fiber count, length, connector details, and relevant network records. Confirm the fiber class with the network designer or equipment documentation. If a listed option is still unclear, contact customer support with the product link and the detail you need to confirm before ordering.
