MPO Harness Cables

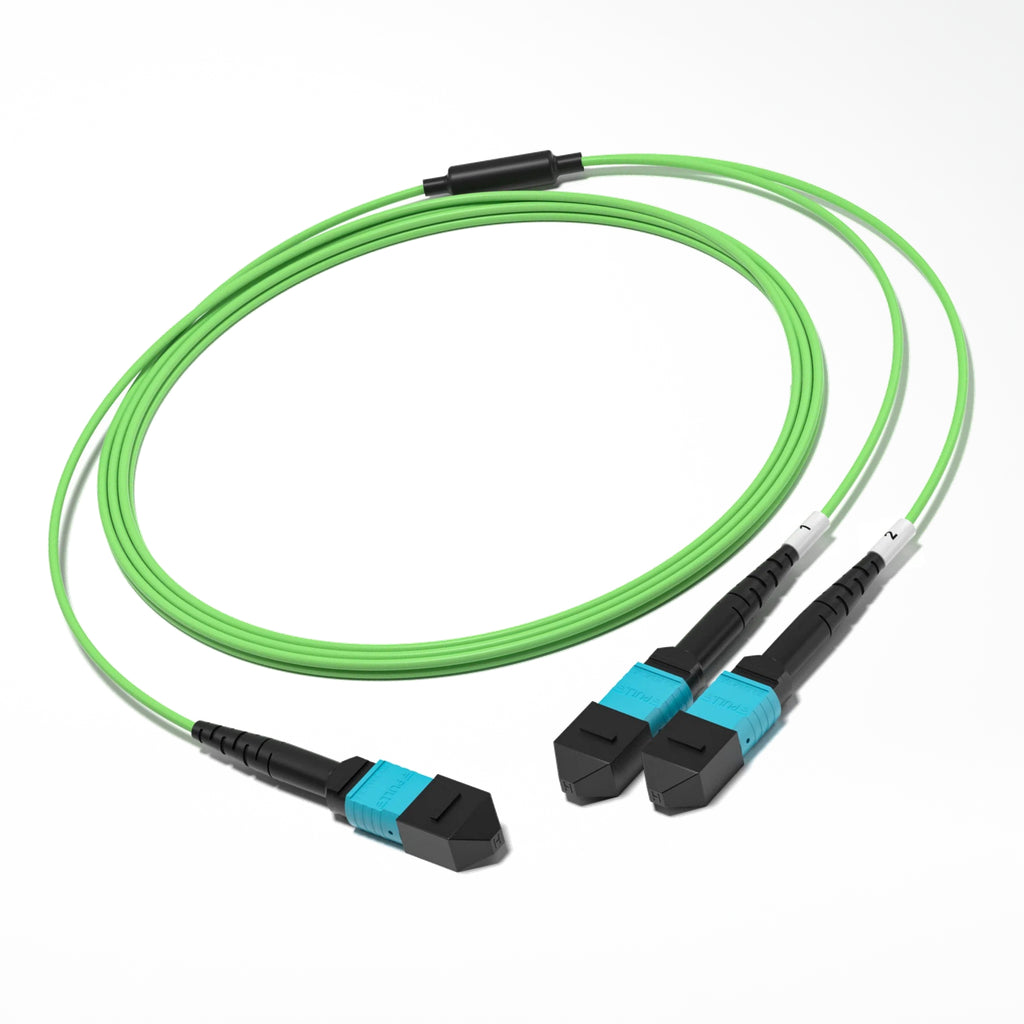

MPO-12 to 2 x MPO-4 8F OM5 Harness Cable
An 8-fiber harness assembly connecting one MPO-12 interface to two MPO-4 branch groups.
Price
$15.00 USD
In stock Ships to U.S. addresses
Configure your cable
Select a length and both connector ends.
An 8-fiber OM5 wideband multimode harness assembly with one MPO-12 connector and two MPO-4 branch connectors, for trunk-to-branch connections. Select the length, end-face polish (UPC or APC) and pin configuration (male or female) using the options on this page. The price and availability shown apply to the configuration you select.
Before ordering, check the fiber type, fiber count, length and connector ends against your equipment. If a detail you need is not listed below, contact us before ordering.
Quality and performance specifications
| Product Structure | Breakout / conversion harness cable |
|---|---|
| Connector A | 1 x MPO-12 trunk-side multifiber connector |
| Connector B | 2 x MPO-4 branch-side multifiber connectors |
| Branch Structure | 1 x MPO-12 to 2 x MPO-4 |
| Fiber Count | 8 fibers |
| Fiber Mode | OM5 50/125um wideband multimode |
| Wavelength | 850/953/1300nm |
| Glass Fiber | OM5 bend-insensitive multimode fiber |
| Length Options | 0.5 m, 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 3.5 m |
| Connector-End Options | UPC male, UPC female, APC male, APC female (branch-side setting applies to the branch connector group) |
| Jacket Color | Lime green |
| Application | High-density MPO breakout, conversion, and parallel-fiber equipment routing |
| Cable Weight | 6.5 kg/km |
Before & after your order
Shipping & returns
The delivery, return and warranty details for your order.
Shipping to the United States
Processing: 1–3 business days. Transit after dispatch: 3–7 business days. Estimated total: 4–10 business days. Standard shipping is $29.90 on orders under $499.90 and free at $499.90 or more (subtotal after discounts, before taxes). Ships from our fulfillment center in China. Shipping Policy
Duties, returns & warranty
U.S. import duties and customs clearance fees are prepaid by us, so nothing is charged on delivery. Request a return within 30 days of delivery; change-of-mind items must be unused and uninstalled, and return shipping to China is paid by the customer. No restocking fee. 1-year limited warranty. Return, Refund & Warranty Policy
Check compatibility before ordering
Confirm fiber type, fiber count, length, and the end-face polish (UPC or APC) and pin configuration (male or female) at both ends against your equipment. If a required detail is unclear, contact us before choosing a substitute.
