MPO Trunk Cables

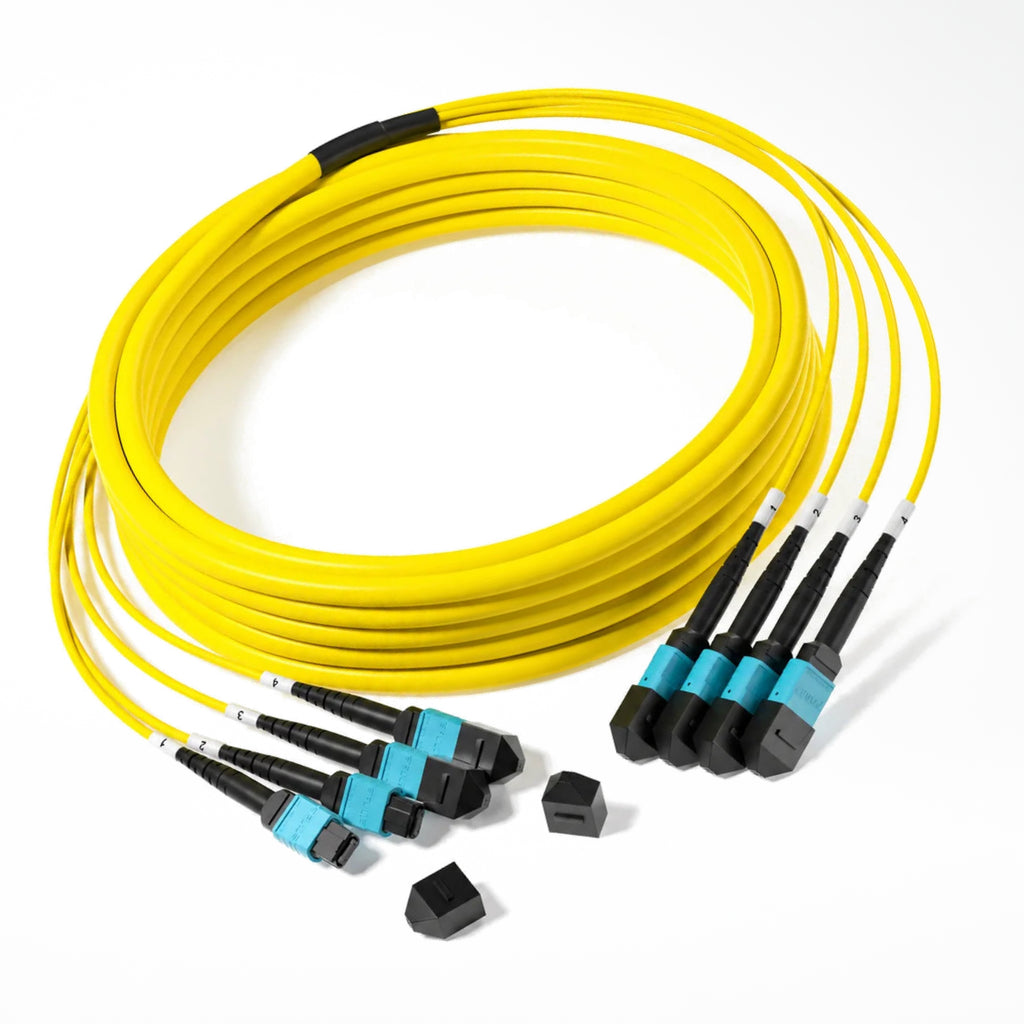

MPO-12 48F OS2 G.657.A1 Trunk Cable
A 48-fiber trunk assembly with four MPO-12 connectors at each end, for rack-to-rack and distribution links.
Price
$66.00 USD
In stock Ships to U.S. addresses
Configure your cable
Select a length and both connector ends.

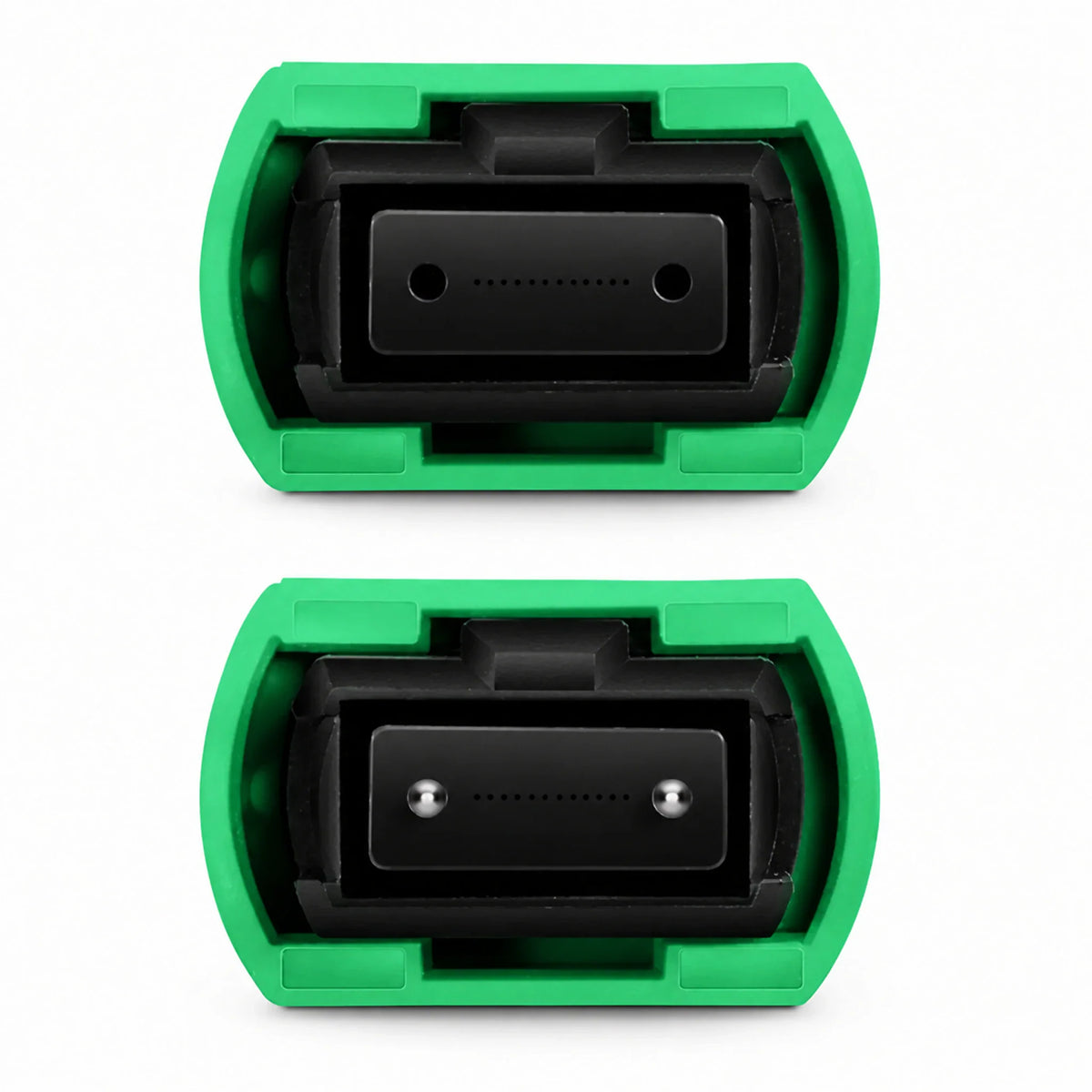

A 48-fiber OS2 G.657.A1 single-mode trunk assembly with four MPO-12 connectors at each end, for backbone and rack-to-rack links. Select the length, end-face polish (UPC or APC) and pin configuration (male or female) using the options on this page. The price and availability shown apply to the configuration you select.
Before ordering, check the fiber type, fiber count, length and connector ends against your equipment. If a detail you need is not listed below, contact us before ordering.
Quality and performance specifications

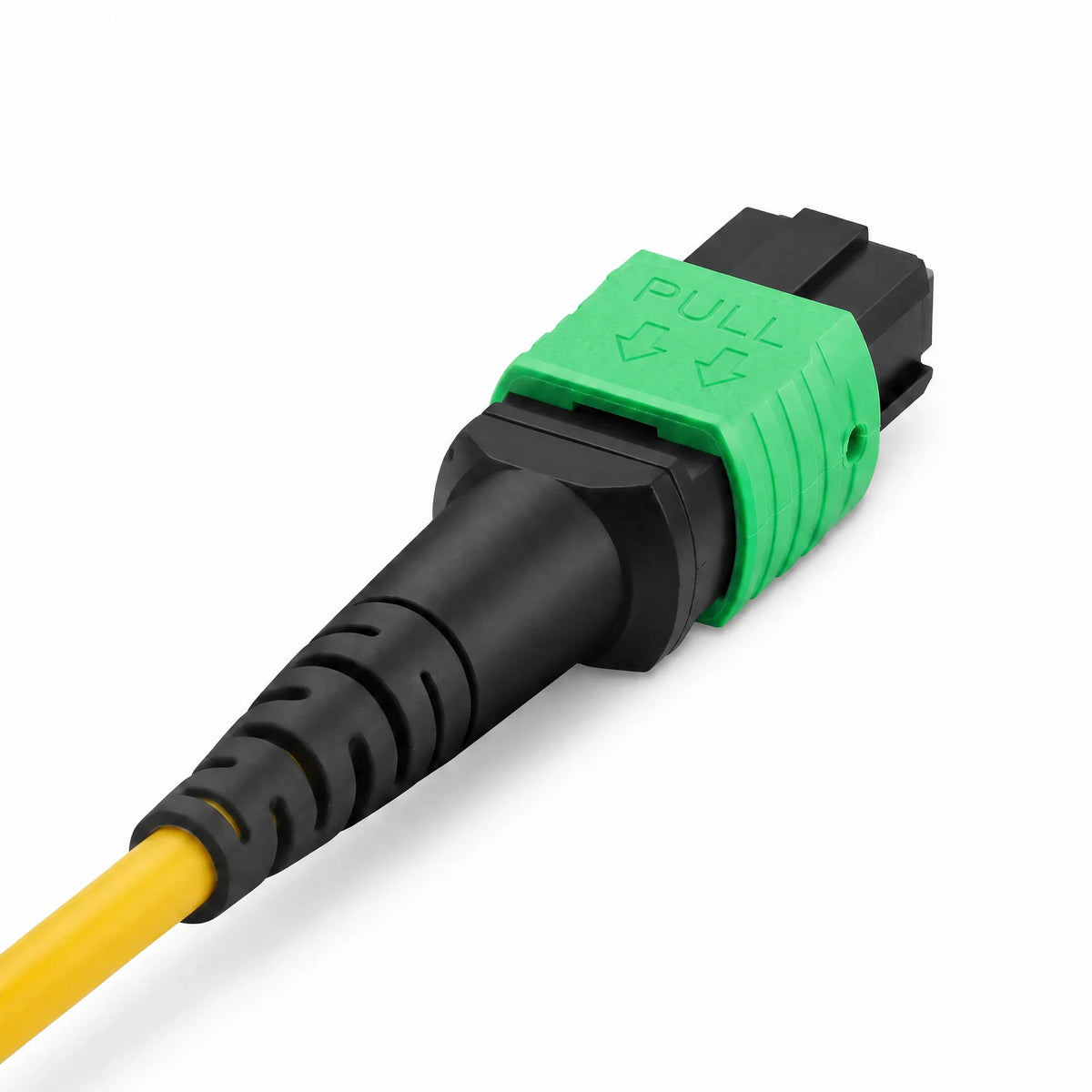

| Trunk Interface | 4 x MPO-12 per end | Fiber Count | 48 fibers |
|---|---|---|---|
| Fiber Mode | OS2 9/125um single-mode | Wavelength | 1310/1550nm |
| Glass Fiber | G.657.A1 | Min. Bend Radius (Optical Fiber) | 10mm |
| Trunk Diameter | 8.5-9.0mm | Breakout Diameter | 2.0mm |
| Insertion Loss | <=0.35dB | Return Loss | >=65dB |
| Attenuation | <=0.36dB/km at 1310nm, <=0.22dB/km at 1550nm | Long-term Tensile Load | 300N |
| Cable Weight | 43 kg/km |
Before & after your order
Shipping & returns
The delivery, return and warranty details for your order.
Shipping to the United States
Processing: 1–3 business days. Transit after dispatch: 3–7 business days. Estimated total: 4–10 business days. Standard shipping is $29.90 on orders under $499.90 and free at $499.90 or more (subtotal after discounts, before taxes). Ships from our fulfillment center in China. Shipping Policy
Duties, returns & warranty
U.S. import duties and customs clearance fees are prepaid by us, so nothing is charged on delivery. Request a return within 30 days of delivery; change-of-mind items must be unused and uninstalled, and return shipping to China is paid by the customer. No restocking fee. 1-year limited warranty. Return, Refund & Warranty Policy
Check compatibility before ordering
Confirm fiber type, fiber count, length, and the end-face polish (UPC or APC) and pin configuration (male or female) at both ends against your equipment. If a required detail is unclear, contact us before choosing a substitute.
