MPO Cable Specification Checklist Before Ordering
Short answer: identify the connection role, product family, fiber count, fiber class, connector configuration, polarity, length, and quantity before choosing a listed MPO cable. Order only when every displayed option matches the installed system. If an option does not match, do not substitute another configuration; contact customer support before ordering.
A description such as “MPO cable, 10 meters” is not enough to select a cable safely. The same length can appear in a trunk, patch, or harness connection, while connector and polarity details can differ. A written checklist helps prevent a mismatch before checkout. On GTfiber product pages, the selectable options are Length, Connector A, and Connector B. The other checks below concern product specifications and installation compatibility; they are not additional selectable options or instructions to customize an order.
Start with the cable's role
Determine where the cable sits in the complete connection. A stable rack-to-rack backbone generally points toward a trunk cable. A shorter MPO-to-MPO equipment or panel link points toward a patch cable. A route that divides one trunk-side connection into smaller connection groups points toward a harness cable.
If the product family is uncertain, record both connection points and the hardware between them. Then compare that path with the product-family descriptions and the options shown on the relevant product page.
Pre-order checklist
| Field | What to verify | Example record |
|---|---|---|
| Connection role | Backbone, local patching, or trunk-to-branch path | Rack A to Rack B backbone |
| Product family | MPO trunk, MPO patch, or MPO harness cable | MPO trunk cable |
| Fiber count | Total fibers and branch grouping where applicable | 48 fibers |
| Fiber class | The class required by the installed system and equipment | OM4 |
| Connector ends | Connector type, gender, end face, and side A or side B orientation | MPO female, UPC, both ends |
| Polarity | Compatibility between the cable mapping and the installed transmit and receive path; confirm any missing detail before ordering | Check against the current installation map |
| Length | The listed Length option and any required branch dimensions; confirm the measurement if unclear | 10 m listed Length option |
| Quantity | The number of identical listed cables needed | 20 units |
| Ordering status | The exact selected option is shown as available and can be added to the cart | Available on the product page |
Trunk cable check
For a trunk cable, confirm the total fiber count, fiber class, route length, polarity, and both connector ends. The route measurement should include an appropriate installation allowance without forcing tight bends or poor cable management.
Order record: rack-to-rack backbone; MPO trunk cable; 48 fibers; OM4; 10 m; connector ends and polarity matched to the approved connection record; quantity 20.
These example records illustrate internal compatibility checks, not selectable configurations or custom-order instructions. Choose only the listed Length, Connector A, and Connector B options, and confirm any required specification that the product page does not state before ordering.

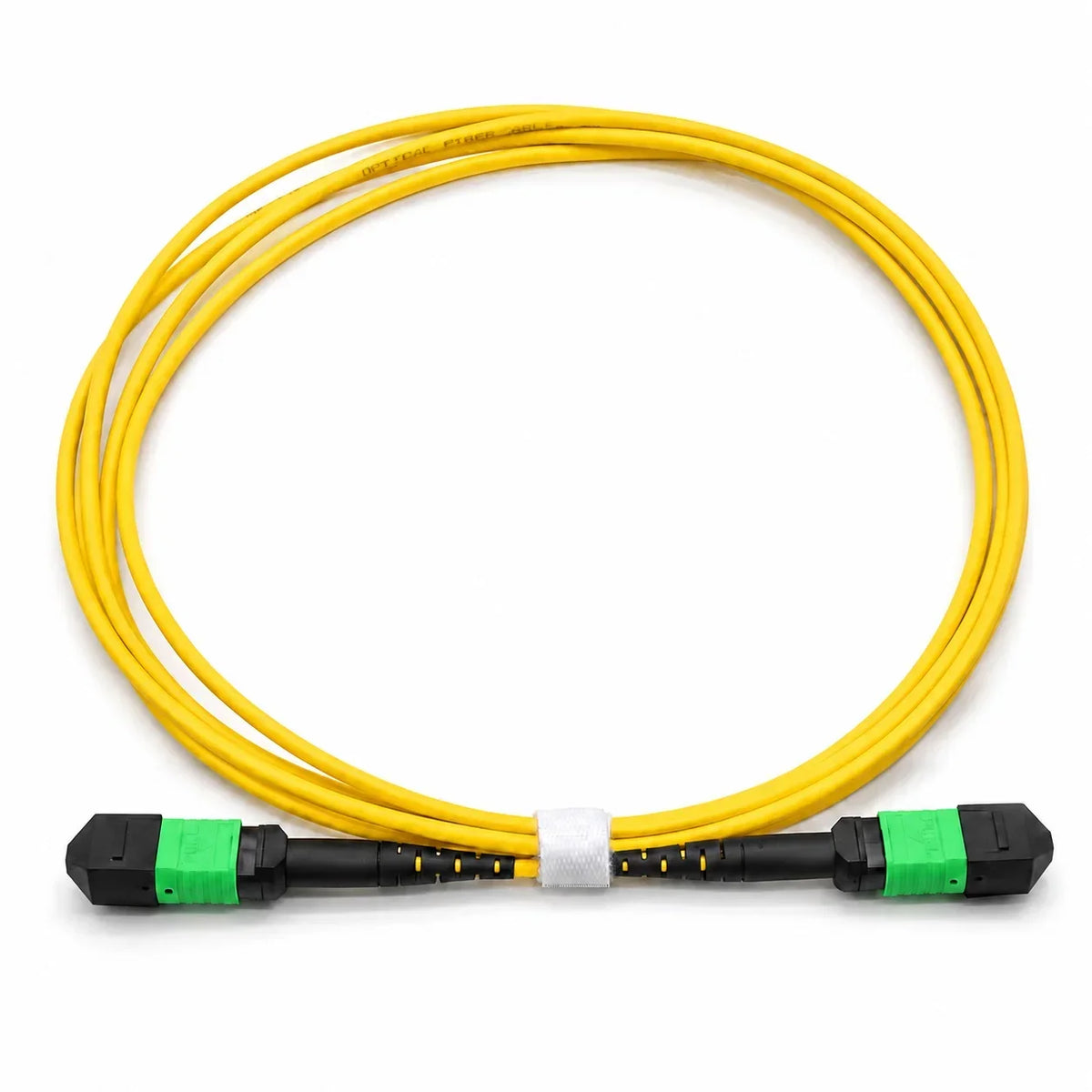

Patch cable check
For a patch cable, identify both MPO interfaces and verify the fiber count, fiber class, connector gender, end face, polarity, and length. “MPO to MPO” alone does not confirm that the two ends match the installed hardware.
Order record: panel-to-equipment link; MPO fiber patch cable; 12 fibers; OS2 G.657.A2; 3 m; both connector ends and polarity matched to the equipment documentation; quantity 12.
Harness cable check
For a harness cable, verify the trunk-side connector, branch count, branch connector type, and branch grouping against the installed equipment. Confirm any required branch dimensions and fiber mapping before ordering if they are not stated on the product page. A harness is not interchangeable with a same-connector patch cable.
Example installation check: trunk-to-branch link; MPO harness cable; 8 fibers; OM4; MPO-12 trunk side to two MPO-4 branch groups; listed Length option 2 m; required branch dimensions and mapping to be confirmed before ordering; quantity 30.
Records to check
- Equipment interface documentation
- Rack, panel, and port schedule
- Port map or lane map
- Installed cable markings and connector details
- Measured route length and cable-management allowance
- A previous GTfiber order record when purchasing the exact same listed item again
When to stop before checkout
| Proceed with a listed option when | Stop and contact support when |
|---|---|
| The listed product family matches the connection role | The route or branch structure differs from the product description |
| The displayed fiber class, fiber count, and connector options match | A required connector, polarity, or fiber detail is not displayed |
| The available length and quantity match the order record | The exact option is unavailable or the nearest option would be a substitute |
Contact customer support
If a listed option is unclear or does not match the connection record, do not substitute another configuration. Use the GTfiber contact form or email support@gtfiber.us with the product link and the specific listed detail you need to confirm before ordering.
