Short answer: MPO polarity, connector gender, and end face are three separate compatibility checks. Polarity describes how fiber positions map through the link. Gender describes whether an MPO plug has guide pins. End face describes the optical contact geometry. Confirm all three against the complete equipment and hardware path before ordering.
A cable can have the correct length and fiber class and still be unusable if one of these details is wrong. Check the complete equipment and hardware path before ordering. On GTfiber product pages, the selectable options are Length, Connector A, and Connector B. Polarity and lane mapping are compatibility checks; they are not additional selectable options or custom-order fields.
Three details that should not be combined
| Field | What it describes | What to verify |
|---|---|---|
| Polarity | How fiber positions connect from one end of the link to the other | Transmit and receive mapping across the complete channel |
| Connector gender | Guide-pin configuration of the MPO plug | Whether each mating interface requires a pinned or unpinned plug |
| End face | Optical contact geometry at the connector | UPC or APC requirement on each end and compatibility with the mating hardware |
Polarity is an end-to-end mapping decision
Polarity determines how fiber positions continue through the channel. The cable is only one part of that path. Cassettes, adapters, other cables, and equipment interfaces may all affect the final mapping.
Do not select a polarity label from memory when the installed route is unclear. Use the approved port map or trace the full channel. Use the current installation record to identify side A and side B so the orientation is not left to interpretation.
Connector gender refers to guide pins
For MPO plugs, a male plug has guide pins and a female plug does not. The two mating sides must be planned together. The connection record should identify the required gender on both ends rather than using one general connector description for the whole assembly.

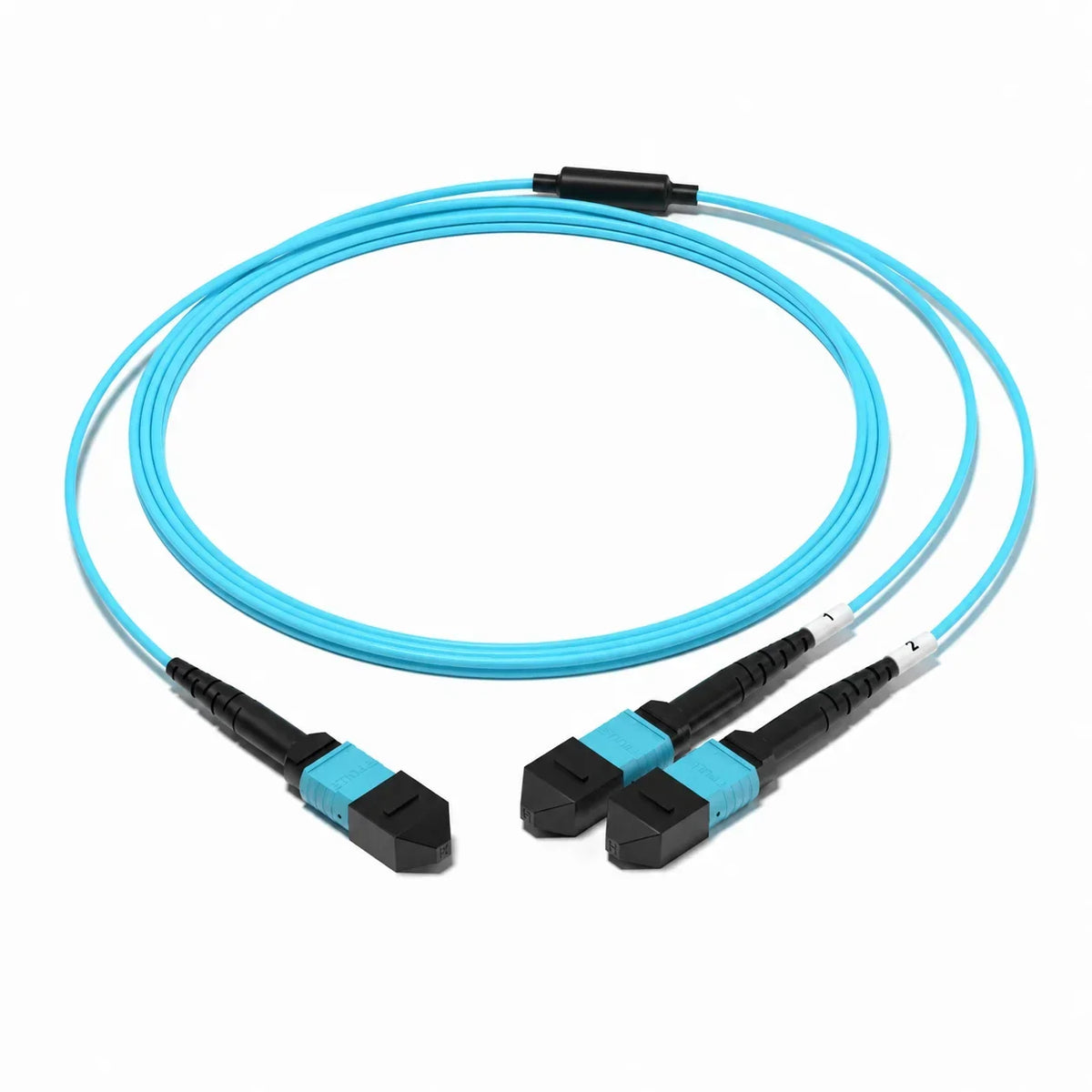

Gender is not the same as polarity, and it does not identify the fiber class or end face. Record it as its own field for A-end and B-end. Harness cables also need gender confirmation for the trunk side and every branch group.
End face must match the mating interface
UPC and APC are different end-face choices. The required option must match the equipment or hardware at the mating point. Do not infer end face from cable color alone, and do not assume both ends are identical when the connection record specifies otherwise.
If the online product options do not show the required combination, do not substitute another configuration. Contact customer support before ordering, and do not place an order with a contradictory note at checkout.
Build an end-to-end connection record
A useful installation record shows the complete path instead of describing one cable in isolation. The labels and port references below help you check your installation; they are not required checkout fields or instructions for custom labeling.
| Path position | Information to record |
|---|---|
| Equipment or source port | Port identifier, interface type, required fiber class, mating connector details |
| First cable end | Side A label, MPO gender, end face, orientation, fiber position reference |
| Intermediate hardware | Adapter, cassette, panel, or other component and its mapping |
| Second cable end | Side B label, MPO gender, end face, orientation, fiber position reference |
| Destination port | Port identifier and expected receive or transmit position |
Compatibility review checklist
- Product family: trunk, patch, or harness
- Fiber count and fiber class
- Compatibility between the cable mapping and the installed transmit and receive path
- A-end MPO gender and end face
- B-end MPO gender and end face
- Side A and side B orientation
- Selected Length option and any required branch dimensions confirmed before ordering
- Your installation labels for identifying racks, panels, ports, and branches
- Quantity and the current installation record
Common mistakes
- Using “male” or “female” as if it describes the entire link instead of one connector end.
- Assuming polarity can be checked from one cable without reviewing the cassettes and other channel components.
- Changing UPC or APC because another option is displayed online or looks similar.
- Leaving side A and side B unidentified in a harness connection record.
- Relying on an outdated or unclear installation map.
What to do when the path is uncertain
Pause the order and collect the port map, equipment interface details, existing cable labels, and hardware information. For a replacement cable, photographs can help identify the installation, but the written connector and polarity record should control the final order.
If a listed product does not clearly match the connection record, do not choose the nearest substitute. Contact customer support through Contact Us or email support@gtfiber.us with the product link and the detail you need to confirm before ordering.
