Short answer: choose an MPO trunk cable for a planned high-fiber-count backbone, an MPO patch cable for a shorter same-connector link, and an MPO harness cable when one high-density connection divides into smaller branch groups. Start with the route role. Connector appearance and cable length alone do not identify the right product family.
A description such as “MPO cable, 10 meters” leaves out the decision that affects everything after it. First determine whether the assembly belongs in a backbone, a local patching path, or a branch connection. Classifying that role makes it easier to check the product specifications against the installed link. On GTfiber product pages, the selectable options are Length, Connector A, and Connector B. Polarity, branch mapping, and installation labels are compatibility checks, not additional selectable options or instructions to customize an order.
Compare the three MPO cable roles
| Product family | Typical route role | What to confirm first |
|---|---|---|
| MPO trunk cable | Backbone link between planned rack, panel, cabinet, or distribution points | Total fiber count, route length, fiber class, connector ends, and polarity compatibility |
| MPO fiber patch cable | Shorter same-connector link around equipment, panels, cassettes, or cross-connect points | Fiber count, fiber class, A-end and B-end configuration, length, local routing clearance |
| MPO harness cable | Trunk-to-branch path that divides one connection into two or more branch groups | Trunk-side connector, branch layout, branch count, connector ends, and compatibility with the installed port map |
Choose an MPO trunk cable for a planned backbone
A trunk cable belongs to the stable part of the link. The path may run between racks, panels, cabinets, or distribution areas. Because this route is planned as part of the backbone, a mistake can affect more ports and can be harder to correct after the cable is routed and labeled.
GTfiber lists 48-fiber MPO trunk cables in OS2 G.657.A1, OS2 G.657.A2, OM4, and OM5. Start with the installed fiber class and route length, then check the connector-end options shown on the product page. If a required configuration is not listed, do not substitute another option. Contact customer support before ordering.

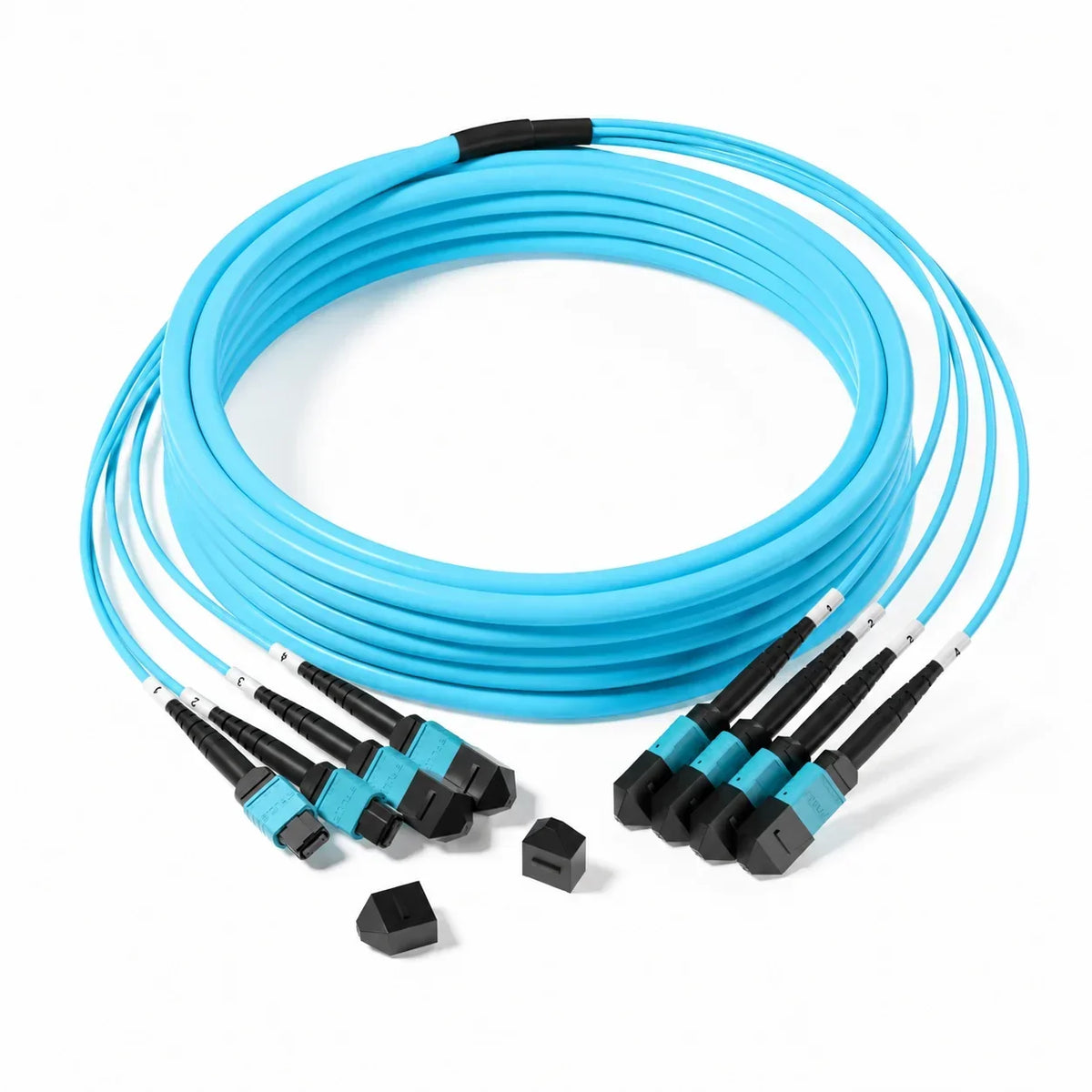

View an MPO-12 48F OM4 trunk cable or compare the MPO trunk cable series.
Choose an MPO patch cable for a local same-connector link
An MPO patch cable connects two MPO interfaces in a shorter and more accessible part of the network. Common locations include equipment-to-panel, panel-to-panel, cassette, and cross-connect paths. The route may be easier to reach than a backbone, but the connector configuration still has to match both ends.
GTfiber lists 12-fiber MPO patch cables in OS2 G.657.A1, OS2 G.657.A2, OM4, and OM5. Confirm the fiber class, length, and both connector ends instead of ordering by cable color or connector shape.
View an MPO-12 OM4 fiber patch cable or compare the MPO patch cable series.
Choose an MPO harness cable for a branch path
A harness cable is not simply a patch cable with extra connectors. It creates a branch plan. One side connects to the trunk or equipment path, while the other side divides into smaller connection groups. The branch layout, connector groups, and fiber mapping must match the installed equipment. If a required branch dimension or mapping is not stated on the product page, confirm that detail with support before ordering.
GTfiber lists 8-fiber MPO-12 to 2 x MPO-4 harness cables in OS2 G.657.A1, OS2 G.657.A2, OM4, and OM5. If the branch layout shown online does not match the planned port map, do not substitute the nearest option. Contact customer support with the product link before ordering.
View an MPO-12 to 2 x MPO-4 OM4 harness cable or compare the MPO harness cable series.
Common selection mistakes
- Using length as the only test. A short assembly can still be part of a backbone, while a longer assembly may still be a local patch link.
- Calling every multi-connector assembly a patch cable. If the connection divides into branches, review it as a harness.
- Choosing by jacket color. Confirm the written fiber class and installed system instead.
- Ignoring the end-to-end path. Cassettes, panels, adapters, and equipment ports can change the required polarity and connector configuration.
- Overlooking installation labels. Use your rack, panel, port, and branch labels to check the installed path; these are installation records, not a custom-label option on the product page.
What to confirm before purchase
| Check | Why it matters |
|---|---|
| Route role | Determines whether the product should be a trunk, patch, or harness cable |
| Fiber count and fiber class | Must match the connection plan and installed optical system |
| Connector configuration on both ends | Prevents a cable from arriving with an end that does not fit the equipment or hardware |
| Polarity or lane map | Maintains the intended transmit and receive path through the complete link |
| Length and routing allowance | Provides enough reach without forcing poor cable management |
| Quantity and connection record | Supports order review, installation identification, and repeat purchasing |
When the listed options do not match
Use the online catalog when the listed product family, fiber class, fiber count, length, and connector configuration match the connection, and the selected configuration is available in the quantity needed. Confirm any required polarity or branch-mapping detail before ordering; the absence of a selector does not establish compatibility.
If any required detail is missing or different, do not choose the nearest option or add a contradictory note at checkout. Contact customer support through Contact Us or email support@gtfiber.us before ordering.
Frequently asked questions
Can one network use trunk, patch, and harness cables?
Yes. A backbone may use trunk cables, local equipment connections may use patch cables, and a branch path may use harness cables. Each assembly should be classified by its own role in the complete link.
Is a harness cable interchangeable with a patch cable?
No. The listed GTfiber harness divides one MPO-12 connection into two MPO-4 branch groups, which a same-connector patch cable does not do.
What should I do if I am not sure which product family fits?
Pause before ordering and record the two connection points, route role, fiber count, fiber class, length, and connector details. If the listed options are still unclear, contact customer support with the product link and the detail you need to confirm.
